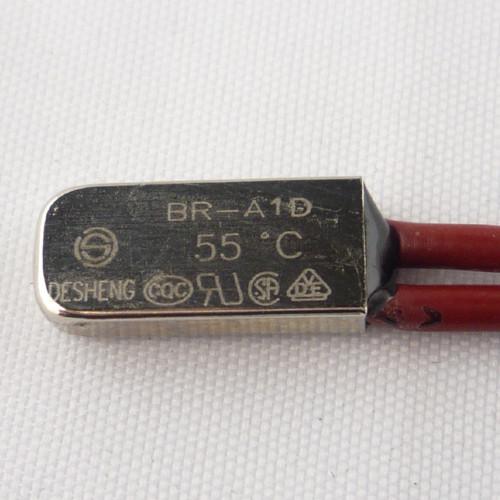

BR-A1D 90℃ 55℃ 250V 5A Thermal Protector with Epoxy resin Seal 6,000 cycles life

Name: BRA1D 90 55 250V 5A Thermal Protector with Epoxy resin Seal 6000 cycles life
Brand: DESHENG
Price: 1 USD

Model Number : BR-A1D 90℃

Place of Origin : China

Brand Name : DESHENG

Certification : UL VDE CE CQC

MOQ : 1000pcs

Packaging Details : 5000pcs per package

Delivery Time : 3-10 days on order date

Payment Terms : T/T L/C D/P

Supply Ability : 3,000,000pcs/month

Product Name : AC thermal protector

Open temperature : 70°C to 150°C

Certifications : UL VDE CE CQC

Contact Now

Low Voltage Remote Capillary Bulb Thermostat Manual Reset For Fridge And Ambient

Capillary thermostat WQS 70A-I, manual reset

-35°C to 350°C
20 Amps @ 240 Vac
Main body temperature: T120 / T150
Faston Terminal Connections:6,3x0,8 mm DIN46244
Contact Closure Resistance:≤50mΩ
Insulation Resistance:≥100MΩ

Applications:

■ - 10 / +16 Refrigeration
■ -35 / +35 Fridge
■ 0 / 40 Ambient
■ 0 / 85 Boliers / Water heaters
■ 0 / 93 Dishwashers
■ 30 / 110 Bain Marie
■ 60 / 200 Deep-fryer
■ 50 / 250 Oven
■ 50 / 300 Oven
■ Other ranges upon request

Description:

Changsheng WQS-I series bulb & capillary thermostats are factory calibrated to a predetermined temperature range. This design offers a changeover thermal switch and an optional auxiliary switch that is useful for activation of an alarm or cooling fan. The principles of operation allow this design to be surprisingly cost effective and a leading choice for use in many applications where precision sensing is required while remaining on a tight budget. When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly activates the electrical contacts at the calibrated temperature set point. The WY-I series is available with a front auxiliary switch as optional.

BR-A1D 90℃ 55℃ 250V 5A Thermal Protector with Epoxy resin Seal 6,000 cycles life

Specifications:

Normally close, open on temperature rise, manual reset, Earth Terminal Option
Working voltage and current	20 Amps @ 240 Vac
Ø Phial diameter	3/6 mm
Cycles life	100,000 cycles
Open temperature	-35°C to 350°C
Temperature Tolerance	±5°C, ±7°C, ±10°C, ±12°C
Differential Temperature	depending on open temperature
Contact resistance	≤100 m
Capillary length	300~ 3000 mm; other lengths available upon request
Body temperature	T120 / T150
Faston Terminal Connections	6,3x0,8 mm DIN46244
Contact Closure Resistance:	≤50mΩ
Insulation Resistance	≥100MΩ
Speed of response	1.0℃/min
.Min. electric current	200mA

Typical Model	Operating temperature		Switch	Voltage (V)	Current (A)	Maximum Temperature Sensing part(℃)
Typical Model	OFF(℃)	DIFF(K)	Switch	Voltage (V)	Current (A)	Maximum Temperature Sensing part(℃)
WQS70A-I	70±5	Manual reset		400/250	20	130
WQS95A-I	95±4	Manual reset		400/250	20	150
WQS140A-I	140±4	Manual reset		400/250	20	160

Competitive Advantage:

1. VDE CE CQC Approved.

2. A variety of coating configuration and shell materials are available according to different usages

3. RoHs (2002/95/EC Directive) compliant

4. Customized adjuster rod lengths and requirements are accepted

5. To supply adjustable knob, bezel and mounting screws

6. Adjustable temperature with positive contact separation

7. Mounting bushings/fittings and various sealing bushings are available

8. SPST or SPDT contact configuration

9. Durable stainless steel or copper construction
